Compuprint 6314/6414 - User Manual

NOTE!

The printer supports simultaneous connection of all available interfaces using the AUTOMATIC feature. The

AUTOMATIC feature is described on page 64.

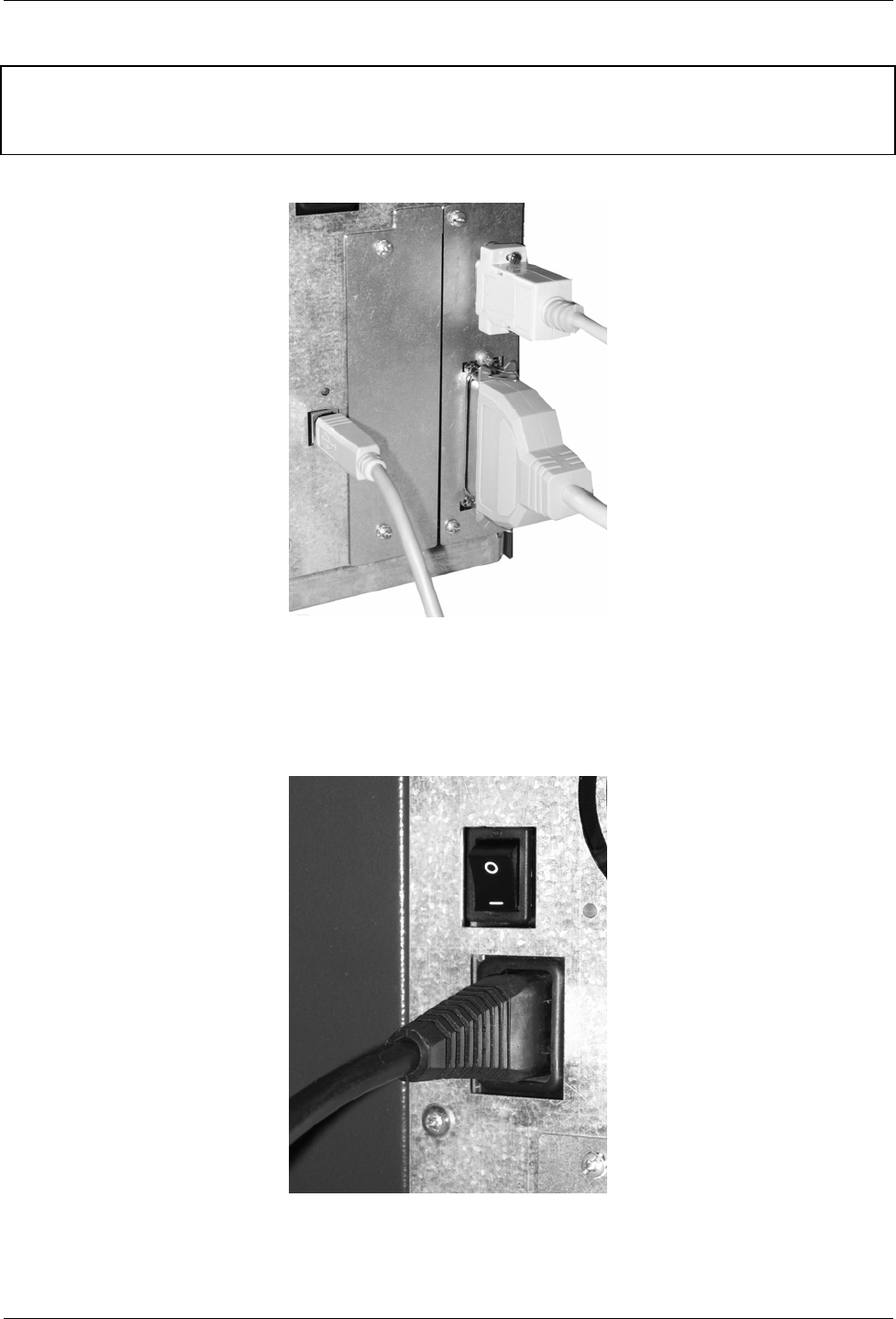

Fig. 3 – Printer Interfaces

- Attach the AC power cord to the AC power receptacle in the rear of the printer (Fig. 4).

Fig. 4 – Connection of power cord and ON/OFF switch
